Compression Springs
Mandatory Specifications
-

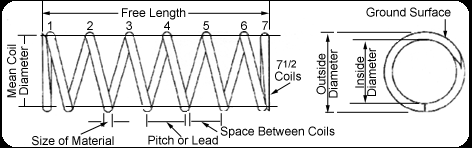

Outside Diameter:
a.
inches (mm) max.
or
b.
inches (mm) ±
inches (mm)
-
Inside Diameter:
a.
inches (mm) max.
or
b.
inches (mm) ±
inches (mm)
-
Load:
Load
lb. (N) ±
lb. (N) @
inches (mm)
Load
lb. (N) ±
lb. (N) @
inches (mm)
Rate
lb. / inch (N/mm) ±
lb. / inch (N/mm)
between lengths of
inches (mm) and
inches (mm)
-
Maximum solid height
inches (mm)
-
Direction of helix (L. R. or optional)
-
Type of ends:
Closed Ends,
Not Ground
Closed and Ground
Ends
Open Ends, Ground
Open Ends, Not
Ground
Advisory Data
-
Free Length:
a.
inches (mm) max.,
inches (mm) min.
or
b.
inches (mm) ±
inches (mm)
-
Wire Diameter
inches (mm)
-
Mean Coil Diameter
inches (mm)
-
No. of Active Coils
-
Total Number of Coils
Special Information
-
Type of Material
-
Finish
-
Squareness: (free): within
degrees.
-
Frequency of Compression
Cycles / sec.
and working range
inches (mm) to
-
Operating Temp.
Degrees F (Degrees
C)
-
Quote quantities:
-
Number of releases per order:
Contact Information
-
Company:
-
Your Name:
-
Your Email Address:
-
Your Phone Number:
|
